Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Product Categories
Bohyar Engineering Material Technology(Suzhou)Co., Ltd
Contact Now

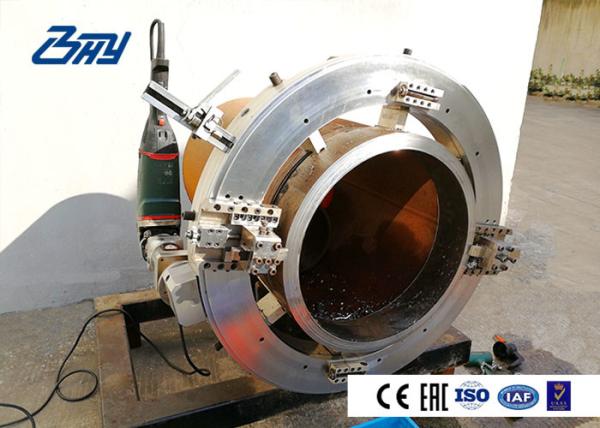

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Brand Name : BHY

Model Number : SFM0612P

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Model : SFM0612P

Drive Mode : Pneumatic

Dimension : 1000*990*305mm

Net Weight : 45kg

Application Range (O.D.) : 6" - 12"(168.3-323.9mm)

Wall Th. : ≤80mm

Warranty : 1 year

Motor : Imported Pneumatic Motor

Contact Now

Aluminum Tube Cutting And Beveling Machine,Cold Cutter And Beveller

Structure

Lighter, Small Gap, Split Type, Cutting & Beveling

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Product Features

■ It is in split frame structure, and can be quickly installed to any position of external wall of operational pipeline with its clamps, occupying small space.
■ It can process pipes made from various grades of carbon steel, alloy steel, stainless steel and other metals.
■ Fixed rings use lightweight and high-strength aeronautical aluminum to ensure portability
■ Cold Cutting-No heat affected zones
■ Equipped with precise machining tools, with high efficiency and long service life

Basic Info.

Model SFM0612P
Drive Mode Pneumatic
Air Requirements 2-3m³/min
Application Range (O.D.) 6" - 12" (168.3-323.9mm)
Wall Thickness ≤80mm
Net Weight 45kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included

Tool Slides

Spring tool slide It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure even feed, and can keep standard wall thickness of large diameter counterbore when combined with counterbore tool slide.

Thick-wall tool slide

It can be applied to SFM 0206 to 4248 with stroke of 64 mm;

It can be used in large-size pipes and pipes with different wall thicknesses.
Drilling and milling tool slide

Achieve pipe cutting by using the drilling and milling.

High-strength tool slide, smooth cutting and simple operation.
Internal boring tool slide It is suitable for pipeline internal boring.
Bridge type tool slide It is suitable for pipeline internal boring and single point beveling.

Beveling type

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Models

Model

Processing

range (in)

Max wall

thickness (mm)

 Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric
SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic
SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

Manufacture

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And BevellerAluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And BevellerAluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller

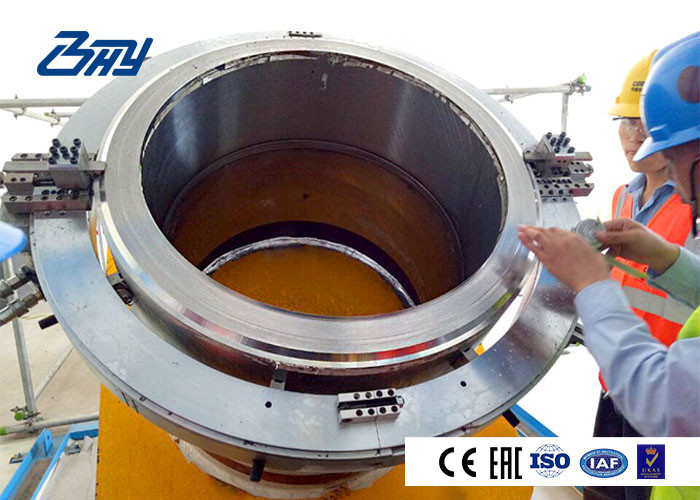

Working On Site

Aluminum Tube Cutting And Beveling Machine, Cold Cutter And Beveller
