Alloy Steel Electric Pipe Cutting And Beveling Machine 220V AC 15.8GPM 1500PSI

Bohyar Engineering Material Technology(Suzhou)Co., Ltd
Contact Now

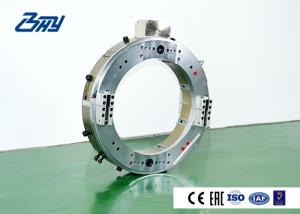

Alloy Steel Electric Pipe Cutting And Beveling Machine 220V AC 15.8GPM 1500PSI

  • 1
  • 2

Brand Name : BHY

Model Number : SFM1218E

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Model : SFM1218E

Drive Mode : Electric

Dimension : 910*810*330mm

Net weight : 35kg

Feed : 0.08mm/r

Package : Aluminum alloy, metal packing case or wooden box

Contact Now

Alloy Steel Electric Pipe Cutting And Beveling Machine 220V AC 15.8GPM 1500PSI

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.

Specifications

Drive mode Pneumatic Air requirements 2-3m³/min
Hydraulic Hydraulic requirements 65L/min,10MPa(15.8GPM,1500PSI)
Electric Electric requirements 220V/AC
Feed method Star wheel system Feed 0.08mm/r
Finish Anodizing sand blasting Packaging Aluminum alloy,metal packing case or wooden box

On-site Service Reference

We have successfully completed this following service project in Henan, China with SFM4860 machine and our own service people through tough work environment and got the commendatory letter from our client. In China, we are the first maker to enter the power plant industry among all the domestic factories of pipe cutting and beveling machines which means our quality is highly comparable to the world-class brands.

FAQ

Q: Do you have any foreign agents?

A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.

Q: Which certificate does your company have?

A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.

Report on Comparison of Product Advantages

Name of component Bohyar Others Advantages
Fixed coil Imported aviation aluminum Steel 45# Light
Moving coil Die steel Steel 45# Solid and durable
Tool Imported tool material Low price Good quality
Tool slide Die steel Steel 45# Solid and durable
Tool slide structure Compact and small size Large Small size
Eccentric shaft Quenching and grinding processing Lathe processing High precision
Gear Gear-grinding processing Gear-shaping processing High precision, stable operation and low noises
Power supply (electric) Germany motor Low price Strong power, stable operation, low noise and long service life
Power supply (pneumatic) Taiwan pneumatic motor Low price Strong power, stable operation, low noise and long service life
Power supply (hydraulic) White motor Low price Strong power, stable operation, low noise and long service life
