Clamshell Type Split Frame Pipe Cutting Machine Adjustable Bearing System
Introduction
Designed with a compact cross section for low clearance applications, the split frame cutting and beveling machine is constucted of steel asnd aluminum componenys-steel where strength is needed,aluminum where strength is less critical than weight.A major advantageo of the SFM is the lightweigt, can be set up by one operatoe without the need for additional lifting devices.The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 84inch and maximum wall thickness of 100 mm.
Specifications
We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.
| Model | SFM206P |
| Drive Mode | Pneumatic |
| Air Requirements | 2-3m³/min |
| Application Range (O.D.) | 2" - 6" (60.3-168.3mm) |
| Wall Thickness | ≤30mm |
| Net Weight | 35kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included |
Our Advantage
Our Technology

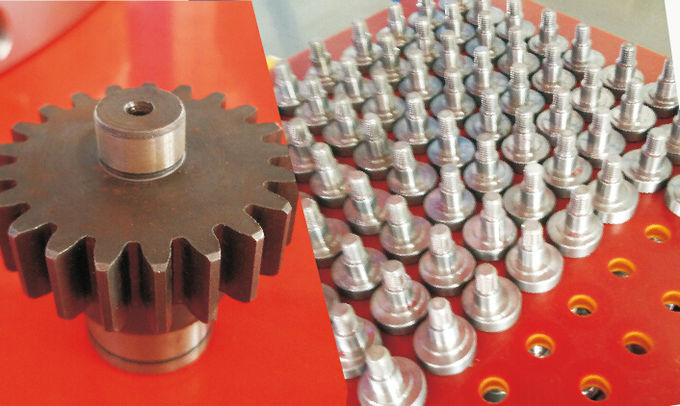

• Eccentric shafts and gear shafts used grinding process after quenching to ensure the accuracy of the tooth surface, as a result the gear shafts perform better than other products in terms of mounting accuracy and precision and boast less noise, more stable movement and longer life.
Others

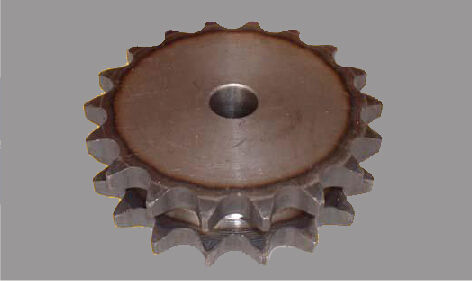

• Eccentric shafts use conventional lathe processing and gear shafts use ordinary hobbing machining, which tends to be low in accuracy, noisy,unstable and easy to wear
FAQ
Q: Which area does your product is used in?
A: Our products can be used in many areas such as oil and natural gas, long-distance pipeline, petrochemistry, refinery, shipbuilding and oceaneering, power plant, water treatment and boiler plant.
Q: Could you tell me your warranty information?
A: Yes. The split frame machine produced by Bohyar is guaranteed for one year while the motor is six months. In case of any quality problem during the warranty period, we will provide free maintenance and repairement service.
